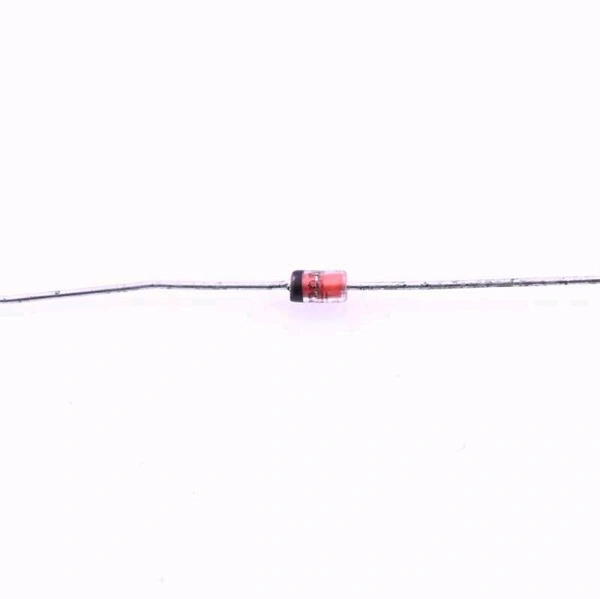

1N4732A 4.7V Zener Diode Q1 C6

Name: 1N4732A 4.7V Zener Diode Q1 C6
SKU: SKU-6558
Price: 5 INR
Availability: InStock

₹ 5

₹ 6

17%

Delivery Options

Get delivery at your doorstep

This 1N4732A Zener diode is another form of diode which comes in Through-hole package. Zener diode will mostly be used in a protection circuit or in a crude voltage regulator circuit. Either way, it very important to remember that a Zener diode should always be used along with a Zener resistor. The 1N4732A 4.7V Zener Diode has a nominal voltage of 4.7V and like other types of Zener diodes, it can be used as a reference element in voltage regulation, and it can also be used in switching applications and clipper circuits.

1N4728A Diode

Equivalent to the 1N4732A 4.7V zener diode, other zener diodes including the 10V zener, 9.1 zener, 8.2 zener, 7.5 zener and 6.8 zener can be found from the website.

Features of the 1N4732A 4.7V Zener Diode

Package type : Through hole

Nominal Voltage : 4.7V

Tolerance : ± 5%

Power Dissipation : 1.0 Watt

Storage Temperature : -65 to 175 degree C

Weight : 0.35g

Case type : Do-41 Glass Case

High reliability

Very sharp reverse characteristics.

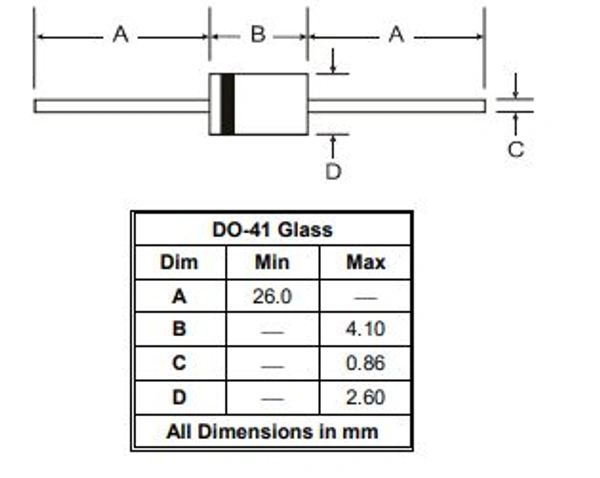

Mechanical Drawing of 1N4732A 4.7V

Mechanical Drawing of 1N4728A

Package Includes

1 x 1N4732A 4.7V Zener Diode
