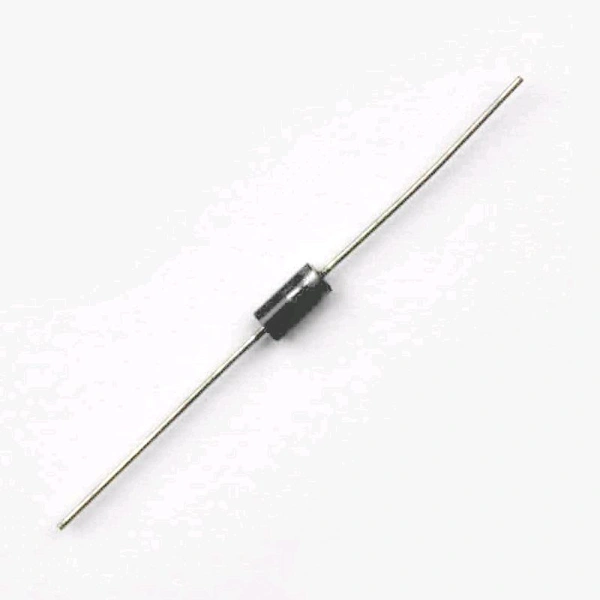

1N4007 Diode (Pack of 5) Q1 C6

Name: 1N4007 Diode (Pack of 5) Q1 C6
SKU: SKU-6543
Price: 16 INR
Availability: InStock

₹ 16 / Piece

₹ 20

20%

Delivery Options

Get delivery at your doorstep

The IN4007 diode is a device which allows current flow through only one direction. That is the current should always flow from the Anode to cathode. For 1N4007 Diode, the maximum current carrying capacity is 1A it withstand peaks up to 30A. Hence we can use this in circuits that are designed for less than 1A. The reverse current is 5uA which is negligible. The power dissipation of this diode is 3W.

Features:

Diffused Junction

High Current Capability and Low Forward Voltage Drop

Surge Overload Rating to 30A Peak

Low Reverse Leakage Current

Lead Free Finish, RoHS Compliant

Specifications:

Maximum Repetitive Peak Reverse Voltage (V)

1000

Maximum RMS Voltage (V)

700

Maximum Average Forward Rectified Current (A)

1

Operating Junction Temperature (°C)

– 50 to + 150

Storage condition (℃)

-55 to 150

Shipment Weight

0.01 kg

Shipment Dimensions

5 × 8 × 1 cm

Package Includes:

1 x 1N4007 diode
