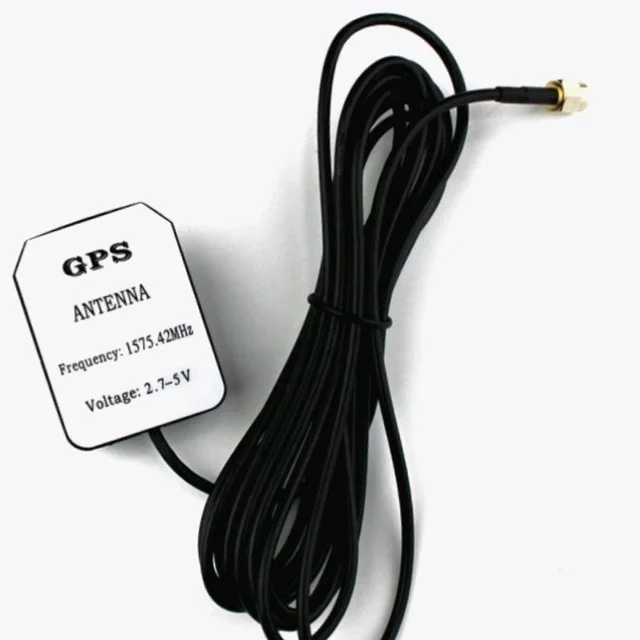

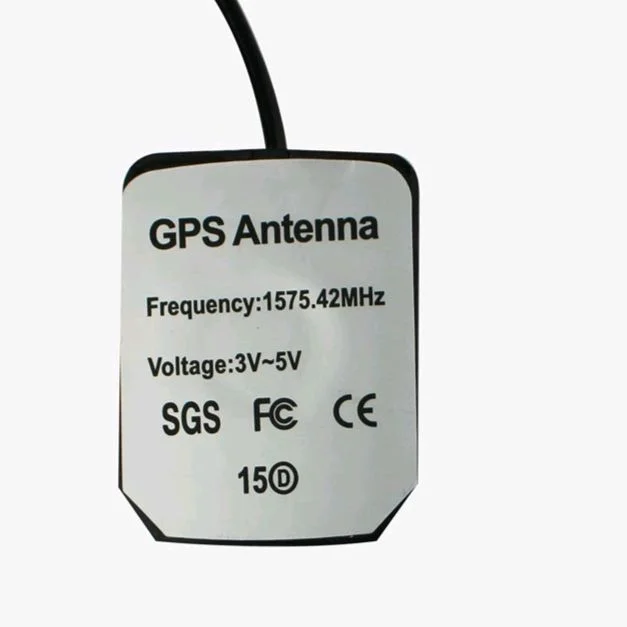

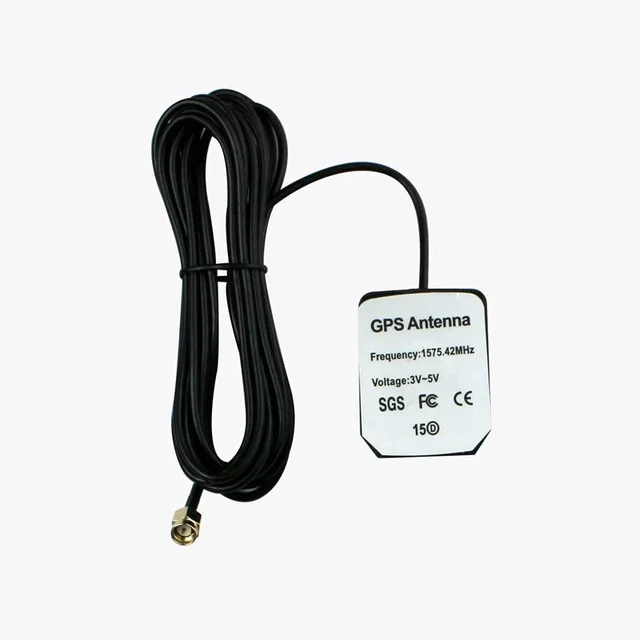

1575 Mhz GPS Antenna for GPS and GSM module Q5 C4

The operational voltage of this antenna is 3V to 5V and provides a gain of 27dB. The Antenna comes in a water-proof design with a cable of 3 meters with a SMA connector making it suitable for rough terrains.

Commonly used with Raspberry Pi GPS HAT or Arduino GPS shield. The antenna also has an internal magnet to allow it to be mounted on metallic surfaces which makes it easy to be placed in different locations.



1575Mhz GPS Antenna Specification:

Operating Frequency : 1575 ± 5 Mhz

LNA gain(without cable) : > 28 dBi (with LNA)

Typical noise figure : 1.5dB

Operating Voltage (VDC) : 3 ~ 5

Operating Current : 15mA

Max. GSM Working Frequency : 824-894/1710-1880 MHz

VAWR : 2:1

Impedance : 50 Ohms

Peak gain : 2dBi at 900mhz,2dBi at 1800mhz

Type : Omni-directional polarization, linear polarization

Connector : Male SMA

Color : Black

Cable Length (Meter) : 3



GPS Antenna (1575.42 Mhz) Applications:

GPS Receptions

Tracker devices

RPI - GPS Shield

Arduino GPS Shield



Package Contains

1x GPS Antenna (1575.42 Mhz)
