Product specifications

• Product type: TSOP1738
• Sensor type: IR sensor
• Number of pins: 3
• Dimensions: 12.5 x 10 x 5.8 mm
• Weight: 5g

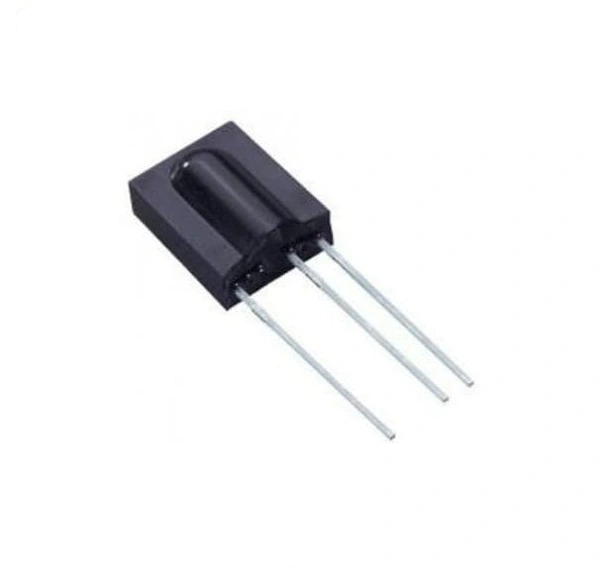

• Colour and shape: as shown in image
• Package contains: 1 x TSOP1738

TSOP sensor a miniaturized receiver for IR (infrared) remote control system. TSOP sensor is consists of a PIN diode and a preamplifier on the lead frame. The epoxy package is designed the same as an IR filter. TSOP is a series of a standard remote-control receiver. The sensor is compatible with controllers and processors. The demodulated output goes to microprocessor or control and gets decoded directly.

Specification:

Voltage supply: 3-5V

Typical voltage supply: 5V

Operating supply: 5mA

Detecting frequency: 38KHz

Detection angle: 90 degree

High range

Wide coverage area

Built-in PIN diode and preamplifier

Respond only IR signal

Low power consumption
