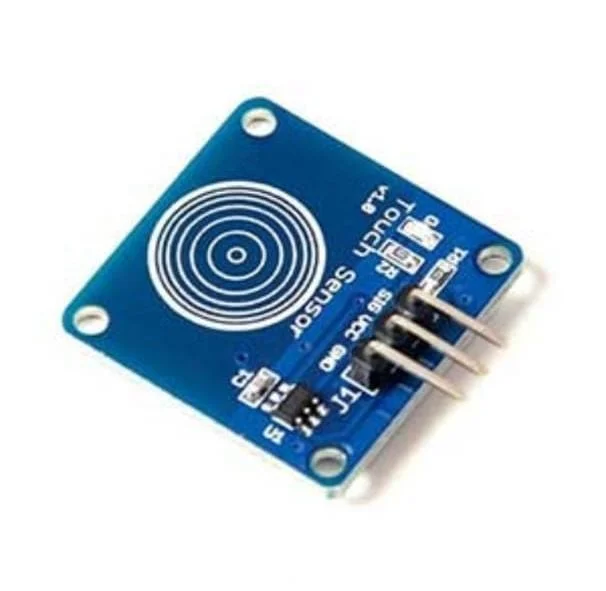

TP223 Digital 1-Channel Capacitive Touch Sensor Module

TP223 Digital 1-Channel Capacitive Touch Sensor Module

₹ 99


Delivery Options

Product Not Available

Product Details

  • Product: touch key sensor module
  • Color: blue
  • Number of channels: 1
  • Mounting time: M2 positioning hole
  • Number of pins: 3
  • Module dimension: 24mm x 24mm x 2mm
  • Package contains: 1 x TP223 Digital 1-Channel Capacitive Touch Sensor Module

           This is one channel TP223 capacitive touch key sensor module designed for replacing traditional direct button keys with reverse pad size. The module uses the touch-sensing IC TP223 to sense the touch input thus making it easy to add capacitive touch to your project.


             The device is very easy to interface with Arduino and other microcontrollers. The best thing about this is it can be used without a controller also.

                       It is a capacitive touch sensor so when a capacitive load such as a human hand is close to proximity to use the sense-pad the sensor detects the changes in capacitance and activates the switch. In the normal state its output is low and keeps it low in the power state. When a touch is sensed on the circular marked region it outputs high and switches to a quick response state. When not being touched or 12 sec it switches to low power again.


Features

Low power consumption

Can replace the traditional touch of a button

Mounting holes to install easily

Compact size

Easy to interface with Arduino or other microcontrollers

Can be used without a controller also

Specification:

Power supply voltage: 2V to 5.5V

Output

High: 0.8V

low: 0.3v

Response time Touch mode: 60mS

Low power mode: 220mS
