Product Details

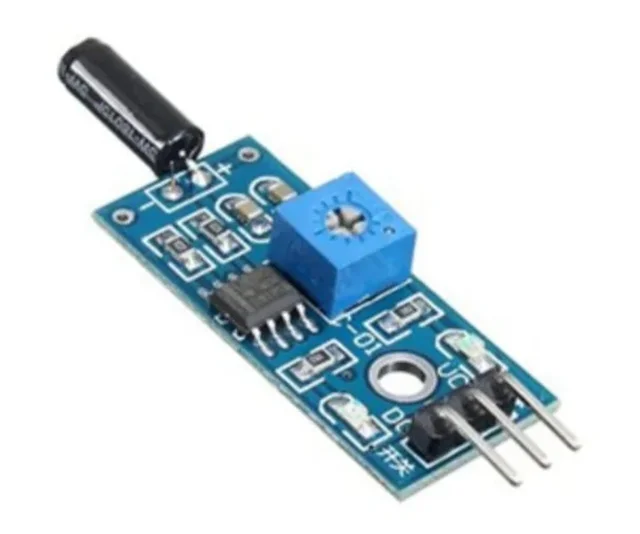

• Product: Tilt Sensor Module
• Pin counts: 3
• Mounting type: M3 hole to mount on any device
• Dimension: 30mm x 14mm x 6mm
• Package contains: 1 x Tilt Sensor Module

Tilt sensor works on a similar principle of mercury switches (but is it not mercury type sensor) and also known as tilt switches inclinometer and rolling ball sensors. The sensor measures the tilt orientation and inclination in different axes in reference to a plane. It measures the tilt in reference to gravity and enables the easy detection of inclination and orientation. The sensor is very simple to use as has a digital output and an M3 mounting hole to mount with the object. It uses SW-460D/SW-520D sensor to detect tilt.

Features

Multiple axes measurement

High resolution and precision

Easy to use and  mount on any object

Low power consumption

Cost-effective and compact size

Digital output

Specification::

Voltage supply: 3.3V to 5.0V

Type of sensor: ball rolling type

The sensor used: SW-460D or SE-250D

Comparator IC used: LM393

Output type: Digital

Application:

Tilt sensing for remote control devices

An automatic rotating display like in phone and tablet

Aircraft to indicate the position of aircraft with respect to the earth

Gaming devices

Digital cameras and other consumer electronics
