QTR-8RC Line Following Reflectance IR Sensor Array

QTR-8RC Line Following Reflectance IR Sensor Array

₹ 699


Delivery Options

Product Not Available

Product Details

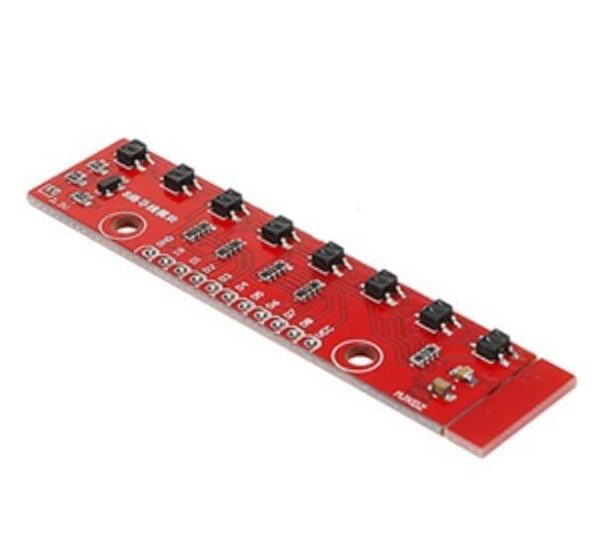

  • Product: Reflectance sensor array or IR sensor array
  • Module: QTR-8RC
  • Dimension: 74.93mm x 12.7mm x 3.175mm
  • Colour: red
  • No of IR pair: 8
  • Package contains: 1 x QTR-8RC reflectance sensor array module

QTR-8RC is a reflectance sensor array but intended as a line sensor. It can be used as a general-purpose proximity IR or reflectance sensor. The device has 8 pairs of IR LED and phototransistors mounted on a 9.525 mm pitch.


Each phototransistor in the module is followed by a pull-up resistor that forms a voltage divider and produces an analog voltage output between 0 to 5V as the function of the reflectance sensor. All the outputs are independent but LEDs are paired to halve the current consumption. The LEDs are controlled by MOSFET with a gate normally pulled high that allows LEDs to turn off by setting the MOSFET gate at low voltage.


Features

No analog to digital conversion requires</li>

Improved sensitivity over voltage-divider analog output

Parallel reading of multiple sensors is possible


Specification

Operating voltage: 3.3 to 5V

Current supply: 100mA

Output voltage range: 0V to supplied voltage

Output format: 8 digital I/O compatible signal

Sensing distance: 3mm

Maximum sensing distance: 9.5mm


Application

Line following robot

DIY electronics and robotics projects
