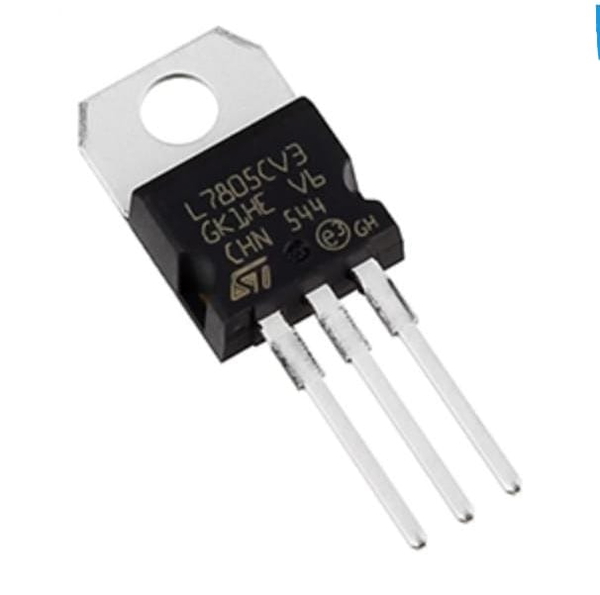

LM7805 7805 IC 5V Voltage Regulator IC

LM7805 7805 IC 5V Voltage Regulator IC

₹ 14


Delivery Options

Product Not Available

IC 7805 is a member of the 78xx series of the fixed linear voltage regulator IC. This regulator IC gives a constant output of 5v and input can be up to 24v (min. 7v). 7805 is so popular among all the voltage regulator IC because 5v is a basic voltage supply for most of the electronics circuit and getting a battery of exactly 5v is not that easy.


Specification


Input voltage: 7v to 25v

Output voltage range: 4.8 v to 5.2v

Typical output voltage: 5v

Maximum output current: 1.5A


Pin Description


Input (7v to 25v)

Gnd

Out (5V)

Instructions

Use a capacitor to minimize voltage fluctuation

Use heat sink to avoid damage because of heat

Product Details:

IC Number LM7805
IC Function converts any voltage to 5 Volts
Number of Pins 3
Pin type through hole
Package TO-220
Package contains 1 x LM7805 Voltage Regulator IC
