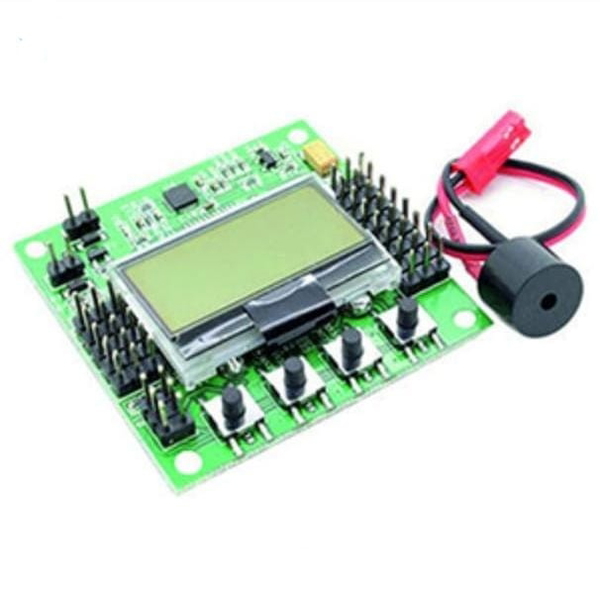

KK2.1.5 Multi-rotor LCD Flight Controller Board with 6050MPU and 644PA

Features:

• Auto Level function
• Gyro with Accelerometer: MPU6050 IMU
• Standard 6 Pin AVR Interface
• 1520us [5 channels] Signal from the receiver

    The built-in software and the LCD screen make the installation and setup process much easier than ever. Multiple craft types are pre-installed. So simply select your craft type then check motor layout and propeller direction, now calibrate your ESCs and radio, and it?s done.

This flight controller has a gyro system that has been updated to an incredibly sensitive MPU-6050 IMU system making this the most stable KK flight controller board ever and has an awesome auto-level function. There?s a 6 Pin USB asp programming interface that ensures future software updates.

There?s an additional polarity protected header for voltage detection and a piezo buzzer is also included for audio warning/alert when activating and deactivating the board or when something is accidentally plugged in incorrectly and there?s also fuse protection for buzzer output.

        Firmware Version: 1.61:

Flying Wing V-tail.

X8 +, X8 X, H8, H6, V8, V6.

Aero 1S Aileron, Aero 2S Aileron.

Singlecopter 2M 2S, Singlecopter 1M 4S.

Custom Mix via the ?Mixer Editor? option.

Pre-installed firmware, Dualcopter, Tricopter, Quadcopter +, Hexcopter X, Octocopter X, Quadcopter X, Hexcopter +, y6.

The Mixer Editor allows you to configure the position and signal power with respect to input and sensors which allows you to create any configuration possible with up to 8 actuators or servos.

Features:

Size: 50.5mm x 50.5mm x 12mm.

MCU: Atmega644 PA.

1520us(5 channels) Signal from the receiver.

Gyro/Acc: MPU6050.

Auto-level: Yes.

Input Voltage: 4.8-6.0V.

AVR interface: standard 6 pins.

The signal from Receiver: 1520us (5 channels).

Signal to ESC: 1520us.

Package Includes

1 x KK2 1.5 Flight Controller Board.

1 x Piezo buzzer.

   Specifications:

Input Voltage (V) 4.8V-6.0V.

Firmware

Pre-installed.

Sensors

MPU-6050 IMU.

Processor

Atmel 644PA MCU.

Auto-level  Yes.

        length (mm) 52mm.

Width (mm)52mm.

Height (mm) 12mm.

Weight (gm)  27gm
