Product specification

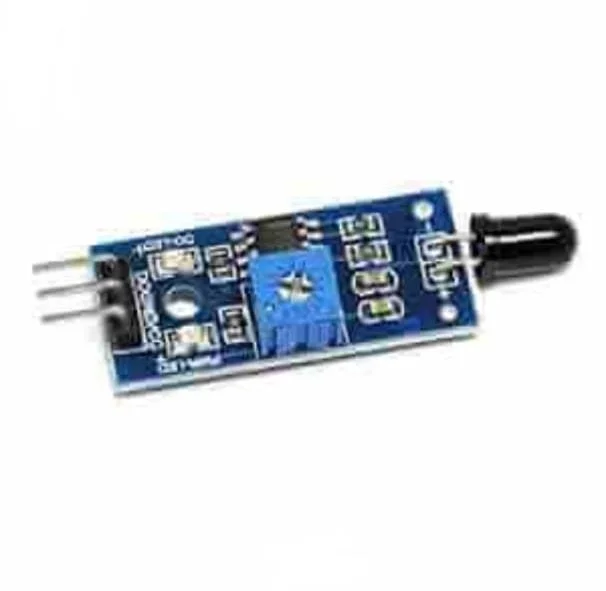

• Product type: IR Flame sensor
• Voltage comparator IC: LM393 chip
• Dimension: 27.5mm x 15.5mm
• Colour: Blue (as shown in image)
• Package contains: 1 X IR Receiver flame sensor.

The flame sensor detects and responses to the presence of fire or flame. The module is based on the IR receiver and basically detects the presence of flammable gases likes nitrogen hydrogen carbon mono oxide. The sensor can be directly interfaced with I/O pins of processors and controllers. It works in the wavelength of the range between 760 nm to 1100 nm in the light source.

Specification

Voltage supply: 3.3-5V

Signal detection capacity: adjustable

Wavelength range: 760 nm-1100 nm

Detection angle: up to 60 degree

Fast response time

Easy to use

Pin Description

Vcc

Output

Gnd

Application

Fire alarm

Firefighting robot

Home security system
