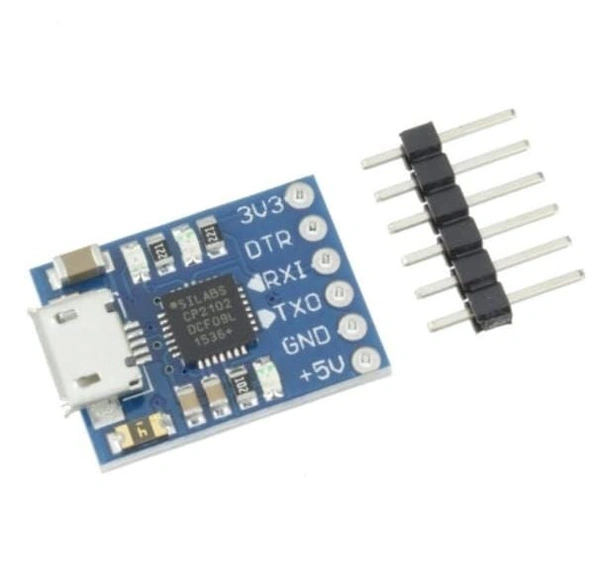

CP2102 USB to TTL USB UART Serial Converter Module

Product Details:

• Product: CP2102 USB to TTL Module
• Number of pins: 6
• Header pins: soldered
• Dimension: 42mm x 14mm
• Weight: 4g
• Package contains 1 x CP2102 USB to TTL USB UART Serial Converter Module

CP2102 Module is CP2102 based on highly integrated single-chip USB to TTL bridge IC. it requires the very minimum external components. The module has a built-in USB2.0 full-speed function controller, USB transceiver, crystal oscillator, EEPROM, and asynchronous serial data bus (UART). It supports a full-featured modem signal without any external USB device. This is a powerful tool for those who want to make PC interfaced projects or devices.

This module can be used with a laptop that does not have a standard serial port. It makes a virtual COM port using USB on the computer which can support various Baud rates for serial communication.

Features

Based on the stable and reliable CP2102 chip

Compatible with Windows, Mac, and Linux

USB2.0 compliant with full-speed 12Mbps

All handshaking and modem interface signal

576 byte receive buffer, 640 byte transmit buffer

Event character support line break transmission

USB suspend state-supported via SUSPEND pins

Specification

Power supply: 5V and 3.3V

Baud rate: 300bps to 1.5Mbps

EEPROM: 1024 Byte

Chip: CP2102

Temperature range: -40? to +85?
