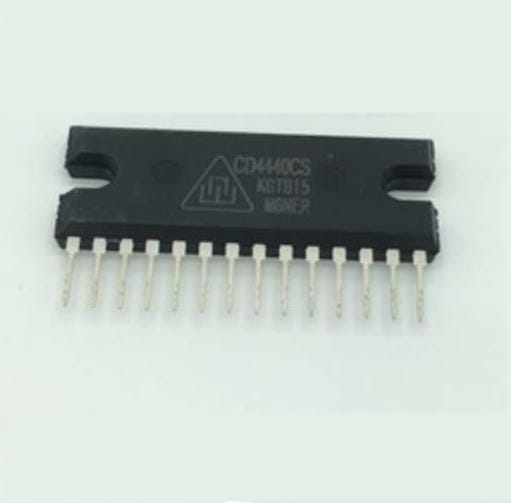

CD4440 LA4440 2 Channel 6W Audio amplifier IC

CD4440 LA4440 2 Channel 6W Audio amplifier IC

₹ 69

₹ 79

13%


Delivery Options

Product Not Available

CD4440 is a Stereotype audio amplifier IC with an inbuilt dual channel that enables it for stereo and bridge amplification applications. It gives 6W output in dual mode and 19W in bridge mode. This IC has inbuilt over power protection small residual noise good ripple rejection and special feature of pin-to-pin protection.


Specification


Supply voltage: 13.2v

Maximum operating voltage: 18V

Surge supply voltage: 50V

Allowable power dissipation: 15W

Output power

Dual-mode: 6W

Bridge mode: 19W

Ripple rejection ratio: 46dB

Quiescent current: 100 to 200mA

Operating temperature: -20�C to 75�C

Features

Inbuilt over voltage surge voltage thermal and pin-to-pin protection

Good channel separation of 44 to 55 dB

Good ripple rejection

Small residual noise

Small distortion over low to high frequency

Product Details :

IC number CD4440 or LA4440
IC type audio amplifier
Number of pins 14
Pin type through holes
Package or case SIP14H
Dimension 37mm x 21mm x 4.5mm
Package contains 1 x CD4440 audio amplifier IC
