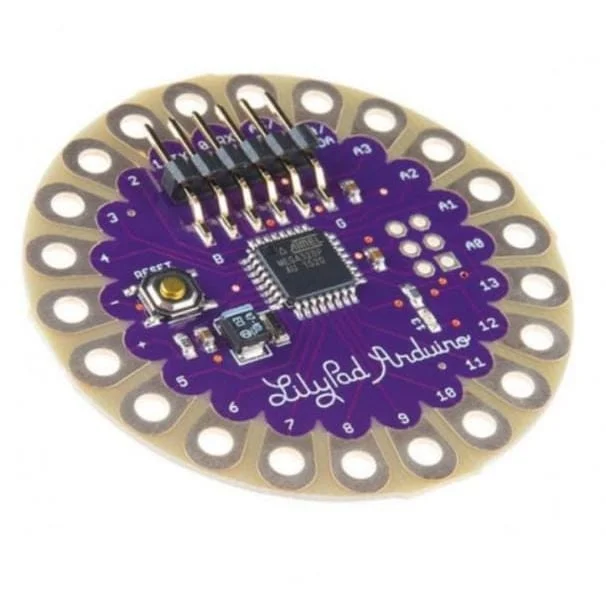

Arduino LilyPad ATmega328 Main Board

Product Details

• Microcontroller used: Atmega328P
• Arduino type: Arduino LilyPad
• Package contains: 1 x Arduino LilyPad

Arduino LilyPad is the main board of Atmega328P and functions the same as other Arduino boards. This Arduino is designed for wearable and e-textiles and can be sewn on fabric and mounted on sensors supplies and actuators with conductive threads. This is a development board of Atmega328p like other Arduino but has a minimum number of external components keeping the board as small as possible.

Specification

Operating voltage: 2.7V to 5.5V

Input-output pins

Digital: 14

Analog: 6

DC current per I/O pins: 40mA

Flash memory: 16 KB (2KB is used for the bootloader)

SRAM: 1 KB

EEPROM: 512 bytes

Clock frequency: 8 MHz

Instructions

Arduino LilyPad should only be programmed with software 0010 or higher.

It can be programmed using earlier version also but all the time-related function will be off (twice as slow as it should be)

It is compatible with an FTDI cable and Arduino Pro/ProMini programmer.

Updated LilyPad is not compatible with LilyPad USB Link.
