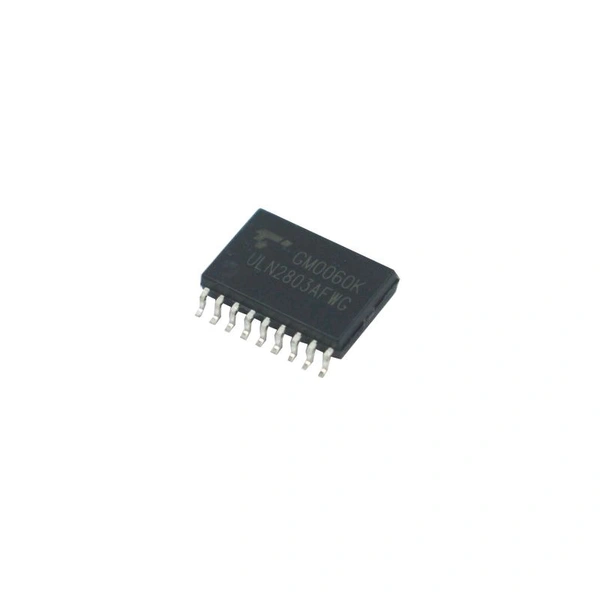

TOSHIBA ULN2803AFWG 8-Ch Darlington Sink Driver H13 A5

ULN2803AFWG is a bipolar digital integrated circuit with 8-Ch Darlington Sink Driver. It is a high voltage, high current Darlington driver made up of eight NPN Darlington pairs. For switching inductive loads, all units include integral clamp diodes. Relay, hammer, lamp, and display (LED) drivers are examples of applications.

Features

Output current (single output) 500mA Max

High sustaining voltage output 50V Min

Output clamp diodes

Input capabilities with various types of logic

Datasheet

Specifications

 Model ULN2803AFWG

 Brand TOSHIBA

 Mounting Technology SMT

 No of Pin 18

 Output sustaining voltage (VCE) -0.5~50V

 Output Current (IOUT) 500mA/CH

 Clamp diode reverse voltage (VR) 50V

 Clamp diode forward current (IF) 500mA

 Power Dissipation (PD) 1.47W

 Operating Temperature -40~85°C

 Storage Temperature -55~150°C
