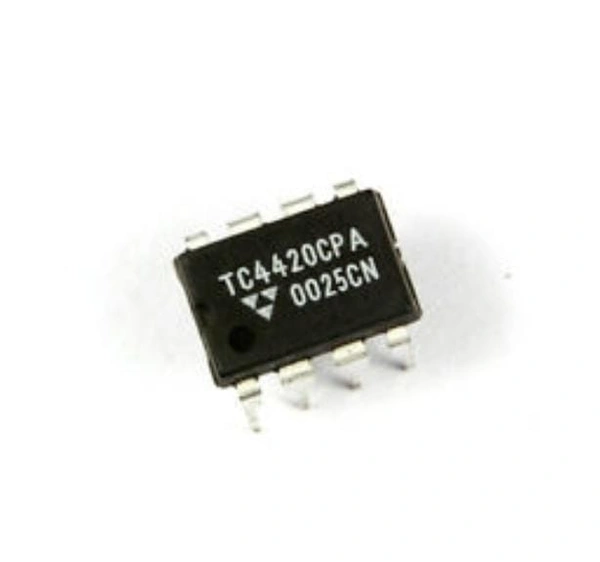

TC4420 High-Speed 6A MOSFET Drive IC

TC4420 is a high-speed non-inverting MOSFET driver with a current rating of 6A. The IC is manufactured with CMOS technology so it consumes less power and efficient performance. The device eliminates the use of an external level-shifting circuit which results in low cost and space. This driver IC features with virtually latch proof and output swing rail-to-rail which ensures better drive voltage margin during power-up and power-down sequencing.

Features

ESD and Latch-up protected

Matched rise and fall time

High capacitive load drive capability up to 10000pF

TTL and CMOS compatible input

Low output impedance

Standard plastic tube 8-lead DIP package

Specification

Supply voltage: 4.5V to 18V

Supply current: 0.45mA to 1.5mA

Input current: 50mA

Peak output current: 6A

Input voltage: VS + 0.3V to GND ? 5V

Power dissipation: 730mW

Application

Motor control

Switching amplifiers

Pulse transformer driver

Switch-mode power supply

Package Contains                                                            1 x TC4420/MIC4420 MOSFET Driver IC
