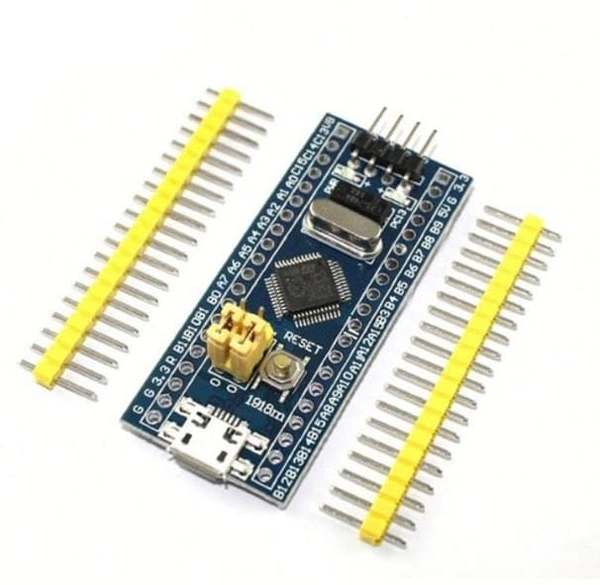

STM32F103C8T6 Minimum System ARM Core STM32 Development Board

Product Details

• Product: STM32F103C8T6 ARM SMT32 development board
• Dimension: 54mm x 32mm
• Header pins: unsoldered
• Package contains: 1 x STM32F103C8T6p microcomputer ARM32 board and header pins

STM32F103C8T6 is a minimum system microcomputer STM32 ARM Core development board. This is a medium-density performance line family that incorporates the high-performance ARM Cortex-M3 32 bit. This board has an operating frequency of 72MHz high-speed embedded memories and an extensive range of enhanced I/O and peripherals connected to two APB buses.

This SMt32 Board is perfect for electronics enthusiasts who want to learn ARM Cortex-M32 32 bit core.

Features :-

Single-cycle multiply and hardware divide</li>

On-power up power reset programmable voltage regulator

Sleep stops standby mode

VBAT powers for the RTC back registers

4-6 MHz crystal oscillator

Embedded 8MHz RC oscillator

Generates CPU clock PLL

32KHz oscillator for RTC with calibration

7 channel DMA controller

An on-board mini USB interface

Specification                                                     Maximum operating frequency: 72MHz

Flash program memory: 64K

SRAM: 20k bytes

Core: ARM32 Co�

Application

DIY robotics projects

Electronics projects

Medical and handheld equipment

Motor drivers
