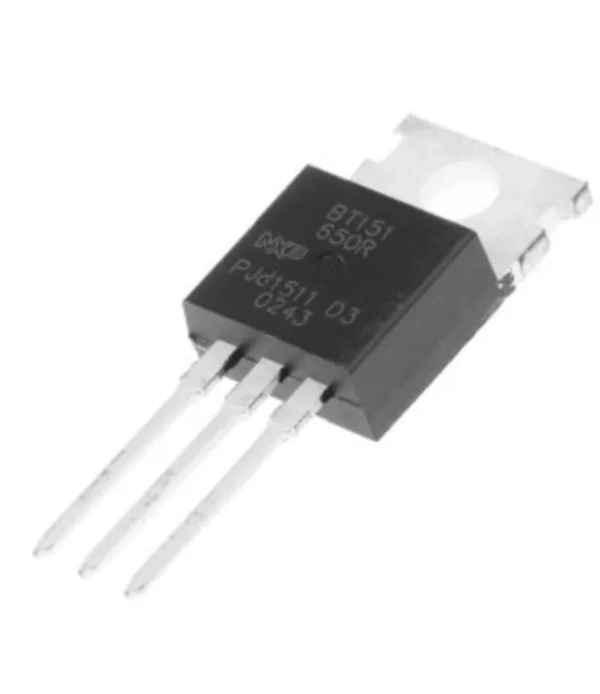

BT151 500V 12A SCR Rectifier Thyristor IC

Product Specifications

• Product Type: Thyristor
• Thyristor type: SCR
• IC Number: BT151
• Number of pins: 3
• Pin type: Dip
• Package Type: To-220AB
• Dimensions: 10.3 mm x 4.7 mm x 9.4 mm
• Mounting type: through hole
• Package contains: 1 piece of BT151 IC

BT151 is an NXP type Semiconductor device. It is a thyristor which is a solid-state semiconductor device with 4 layers of alternating N and P-type material. It finds its application where high voltage blocking capacity and high thermal cycling performance is required.

BT151 is an SCR rectifier passivated thyristor IC in a plastic envelope. The device is intended for use in applications requiring high bidirectional blocking voltage capability and high thermal cycling performance.

Features

Good bidirectional blocking voltage capability

High surge current capability

High thermal cycling performance

High reliability

Specification

Repetitive peak off-state voltage: 650V

Average on-state current: 7.5A

RMS on-state current: 12A

Gate trigger current: 1mA to 15mA

Application :-

Ignition circuits

Protection circuits

Motor control

Static switching

Related average on state current: 7.5 Amp

Surge current rating: 132 Amp

 Maximum Gate trigger current: 15 mA

Maximum holding current: 20 mA

Repetitive peak off current: 0.5 mA

Repetitive peak reverse voltage: 500 Volts

Maximum gate trigger voltage: 1.5 Volts

Peak on state voltage: 1.75 Volts

Repetitive peak forward blocking voltage: 500 Volts
