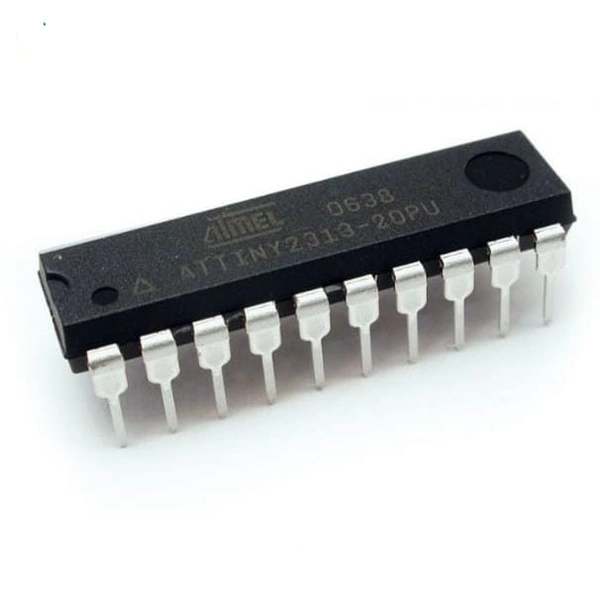

ATtiny2313 Microcontroller 8-Bit AVR Microcontroller

Product Details

• Controller family: ATtiny AVR
• IC or Chip: ATtiny2313
• Type: AVR Microcontroller
• Pin counts: 20
• Pin type: through hole
• Operating voltage range: 1.8V-5.5V
• Package contains: 1 X original ATtiny2313 IC

The attiny2313 microcontroller is a type of low-power 8-bit CMOS microcontroller. The architecture of this microcontroller is based on enhanced RISC architecture. ATtiny achieves throughputs of 1 MIPS/MHz by executing powerful instruction which allows the designer to optimize power consumption and speed.

Specification

General-purpose working registers: 32 x 8

Throughputs: 20 MIPS at 20 MHz

In system EEPROM: 128 Bytes

Internal SRAM: 128 Bytes

On-chip debugging

Programmable input-output lines: 18

CPU: 8-bit

Maximum working frequency: 20MHz
