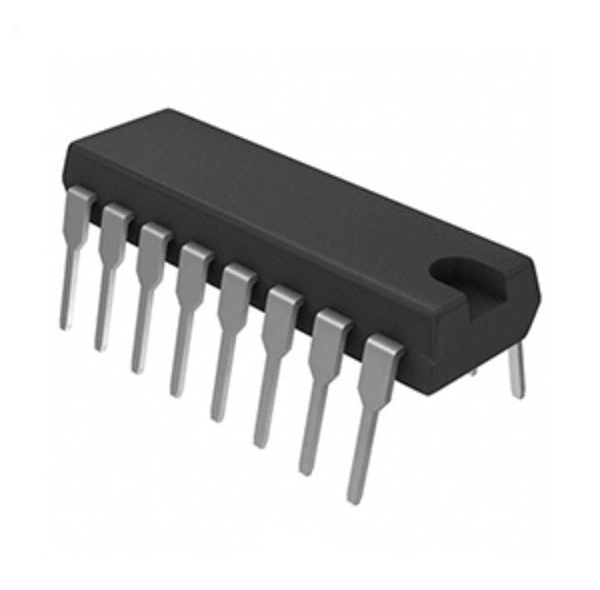

ADC0809 8-bit 8-Channel ADC Analog to Digital Converter IC

Features:

• Easy Interface to All Microprocessors
• No Zero or Full-Scale Adjust Required
• 8-Channel Multiplexer with Address Logic
• 0V to VCC Input Range
• ADC0809 Equivalent to MM74C949-1

The 0809ADC data acquisition element is a monolithic CMOS device with an 8-bit ADC 8-channel multiplexer and microprocessor compatible control logic. The 8-bit Analog to Digital converter utilizes successive approximation as a conversion technique. The converter features a high impedance chopper stabilized comparator a 256R voltage divider with an analog switch tree and a successive approximation register. The 8-channel multiplexer can directly access any 8-single-ended analog signals.

Features:

Easy Interface to All Microprocessors.

Operates Ratio-metrically 5 VDC Analog Span Adjusted Voltage Reference.

No Zero or Full-Scale Adjust Required.

8-Channel Multiplexer with Address Logic.

0V to VCC(~6) Input Range.

Outputs meet TTL Voltage Level Specifications.

ADC0809 Equivalent to MM74C949-1.
