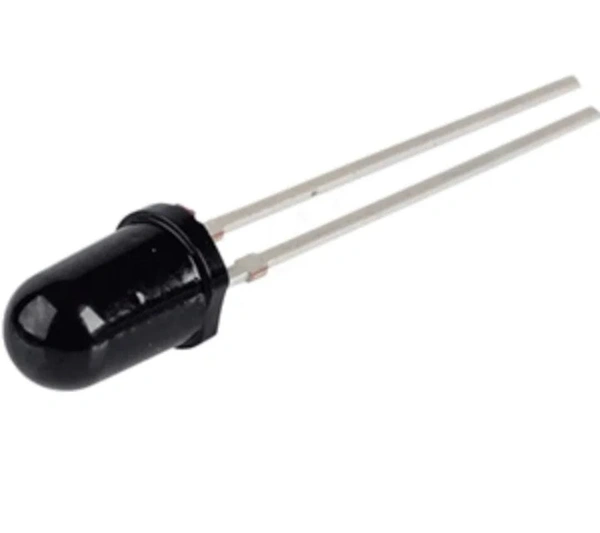

5pc 5mm Photodiode LED IR Receiver Black - r270

₹ 39

Whatsapp
Facebook

Delivery Options

Get delivery at your doorstep


Product details

  • Product type: photodiode or IR receiver
  • Colour: black
  • Size: 5mm
  • terminal: 2
  • Package contains: 5 x 5mm photodiode

The photodiode is a type of Diode but different from the LED. It does not emit any light but detects the presence of light. This diode allows some current to pass through it after detecting light and the amount of current flow is directly proportional to the amount of light detected so it is called IR receiver and makes a pair with IR transmitter.



Specification



Open current voltage: 0.39V

Reverse voltage: 32V

Short-circuit current: 35 �A

Reverse light current: 25 to 35 �A

Reverse dark current: 5 to 30nA

Total capacitance: 10pF

Rais time and fall time: 45ns

View angle: 80 degree

Wavelength sensitivity: 940nm
