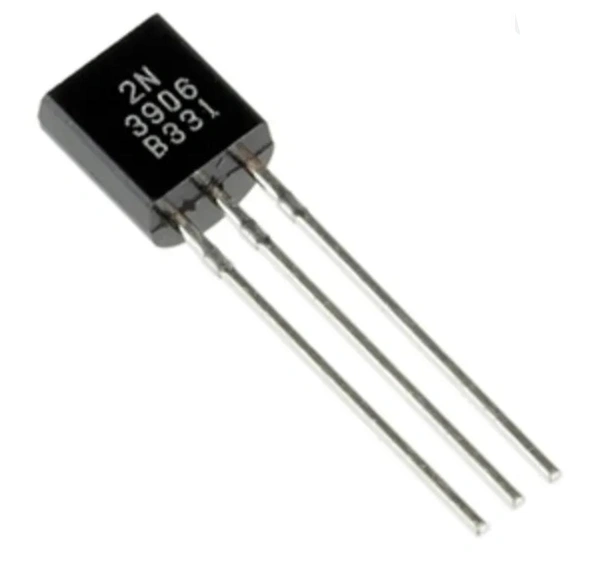

5 pcs 2N3906 General Purpose PNP Transistor

Product details

• IC Number: 2N3906
• Polarity: PNP
• Package: TO-92
• Number of pins: 3
• Pin type: through hole
• Package contains: 1 x 2N3906 PNP transistor

         2N3906 is a general-purpose PNP transistor that comes in TO-92 Package which is capable of medium power applications. Its features like fast switching sort turn off and low saturation makes it suitable for switching and amplification applications.

Specification

Collector-emitter voltage: 40V

collector-base voltage; 40V

Emitter-base voltage: 5V

Continuous collector current: 200mA

Maximum base current: 5mA

Total power dissipation: 1.5W

Maximum DC current gain (hFE): 300

Operating temperature range: -55? to +150?

Application

Used to switch high voltage low current loads

Optimal for loads with high peak voltage up to 40V

Used in a various switching application

Inverters and converters circuits

Darlington pair
