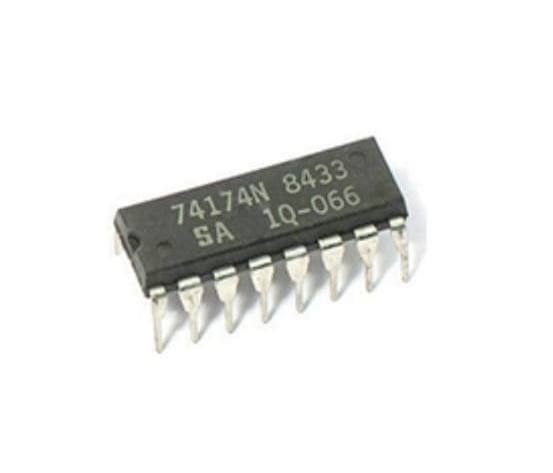

74174 IC Hex D type Flip Flop with Reset Delay Flip Flop IC

Product details

• Product type: D flip flop
• IC Number: 74174
• Number of flip flop circuits: 6
• Number of pins: 16
• Pin type: through hole
• Package type: PDIP-16
• Family or category: 74xx series IC
• Package contains: 1 x 74174 IC (Original)

74174 is a member of the 74xx series IC. it is a D flip-flop IC with reset and has 6 such circuits. 74174 IC comes with features of low power consumption noise immunity and individual input and output data. It has a common clock and master reset which inputs load and reset all flip-flop simultaneously.

Specifications

Voltage supply: 2V to 6V

Output current ratings: 5.3mA

Power dissipation: 38mW

Operating temperature: 0�C to +70�C

Propagation delay: 16ns

Buffered clock and direct clear inputs

Individual inputs for all D flip flop

                                                                           Application

Storage register and buffer

Shift register

Pattern generator
